Draft Survey and Trimming Assistant on Excel for Bulk Carriers and General Cargo Version 2.3
Version: 2.3
Developer: Mederic R. Dumapi
Platform: Windows
64-bit OS compatibility: yes
Minimum Requirements:
- Windows OS
- Microsoft Excel with Macros (Update if possible)
- USB Drive
Localization: EnglishCrack: Not needed
Description: Included
Program Features
1. Change Ship to another Ship Data
2. Draft Survey (Initial, Interim1, Interim 2, and Final)
3. Trimming by Cargo (Support up to 21 Cargo Holds)
4. Trimming by Draft (Support up to 21 Cargo Holds)
5. Trimming by Hatch Pours (can do 3 Hold Trimming). (Support up to 21 Cargo Holds)
6. Passage Calculation
7. Trimming Tables
8. Loadline Calculation

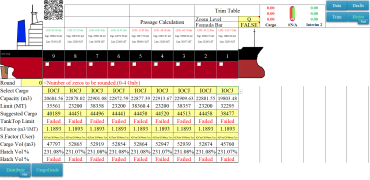

9. Automatically Distribute Cargo into holds.
10. Draft Survey for loading and Report generation.

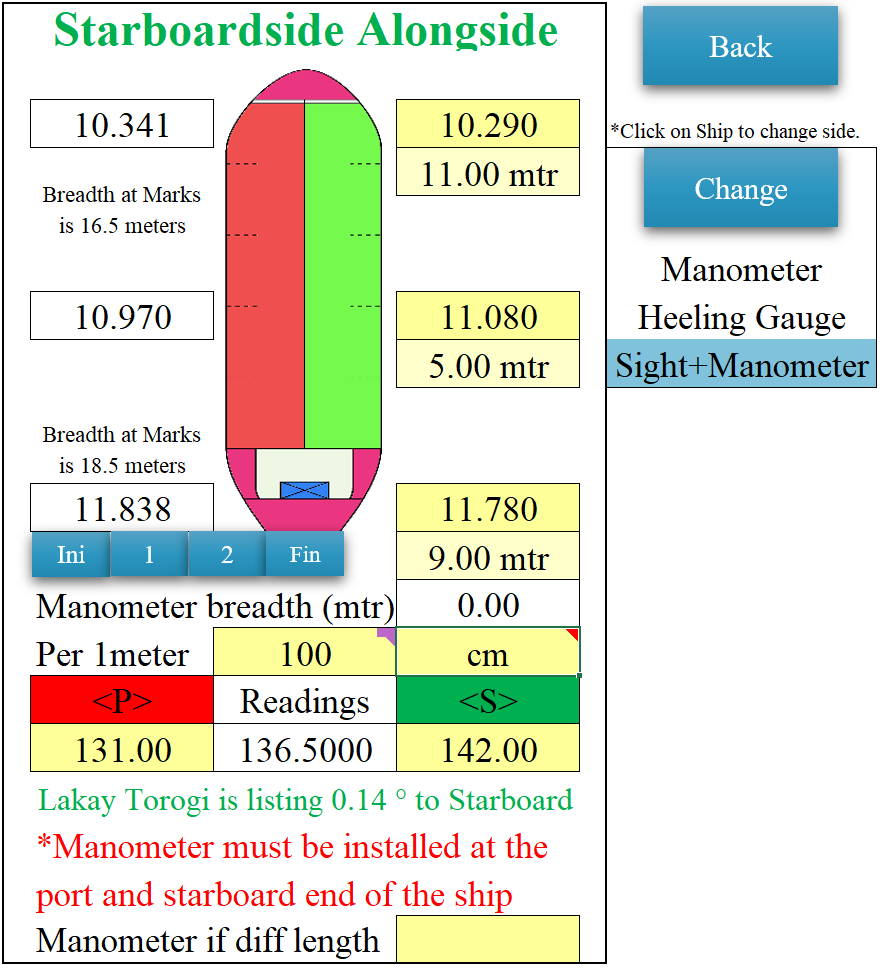

11. Get seaside drafts by Manometer
12. Get seaside drafts by Heeling Gauge
13. Get seaside drafts by Sight and Estimation

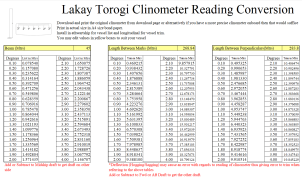

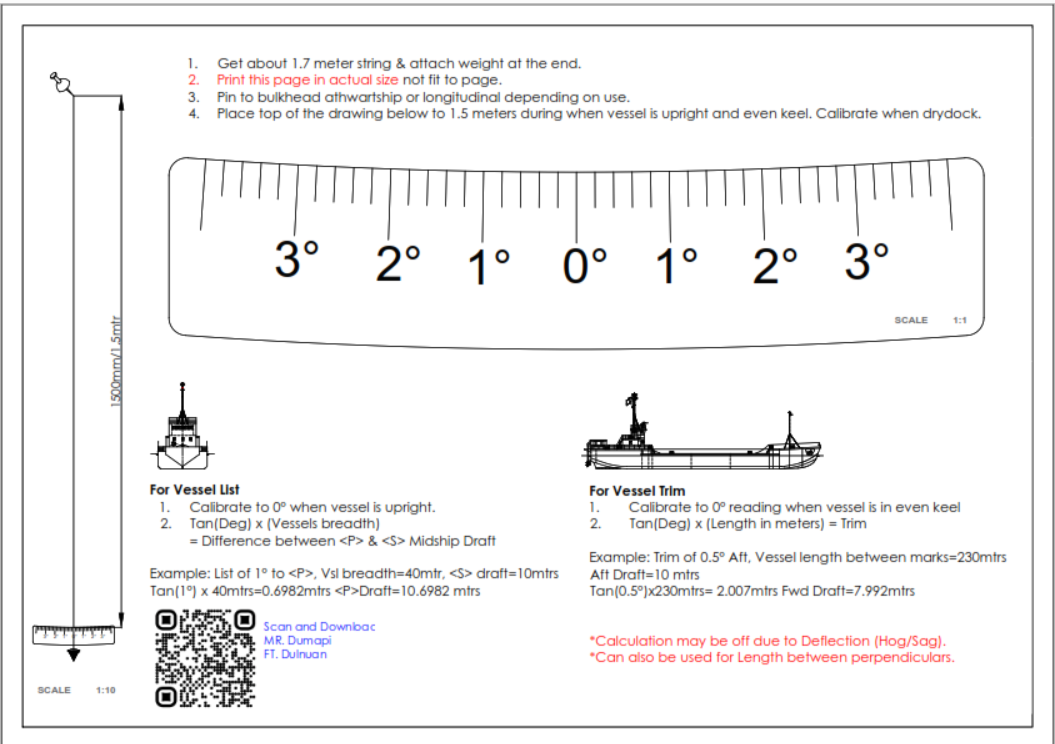

14. Clinometer
15. Hull Templates for ships without Half Breadth/Full Breadth or Heeling Correction.
16. Computation for Ships Breadth even if heel correction data were inputted.
17. Sag Effect for Final Drafts
18. Calculate Summer Draft with FWA available with in 3cms accuracy.
19. Calculate Squat Table
20. Fast Manometer-Heeling Tube-Level Hose Fast Reading for trimming.
* I did skip uploading for these past few months due to I cannot access [SeaTracker] onboard the ship due to slow internet and also the migration of this website from [.ru] to [.org]. Please understand if i did not address your concerns.
*Also consider uploading or sending to my email the ship data files that is not included in the database into the network as to benefit other users as this program have benefited you.
Cheers and Mabuhay.
Don't forget to leave [Like] and [Upload Rating]. Thanks
Additional info: Installation Instructions in the torrent Folder.
Important-Put all files in the root of a USB Flash Drive

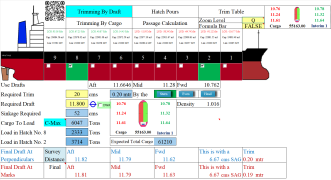

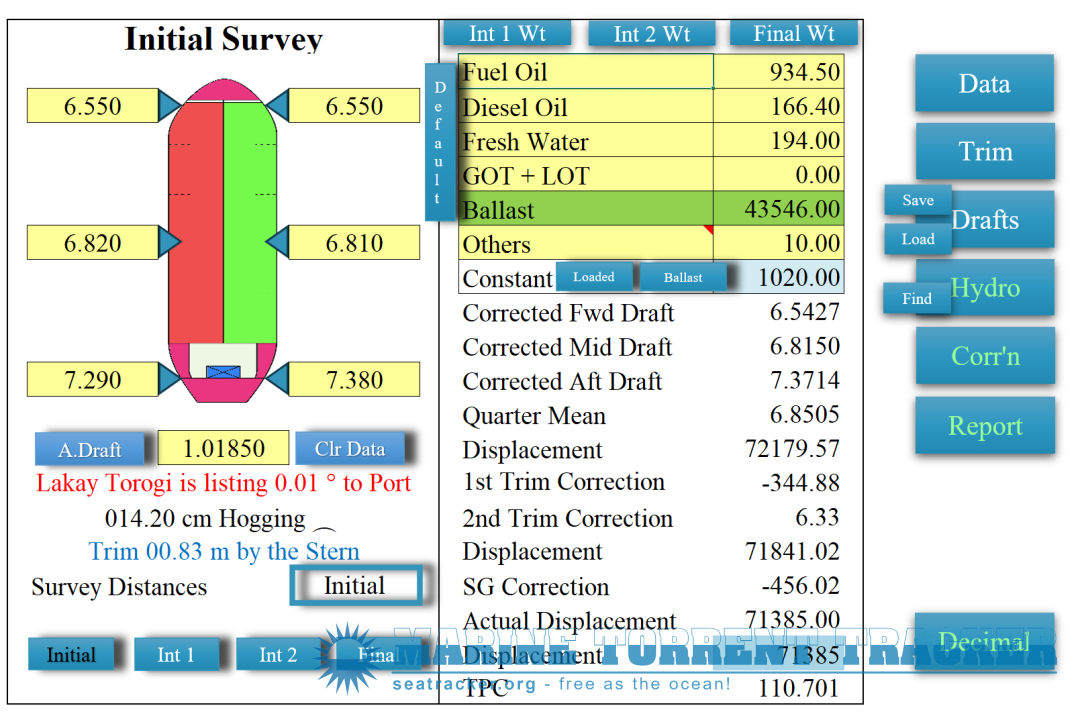

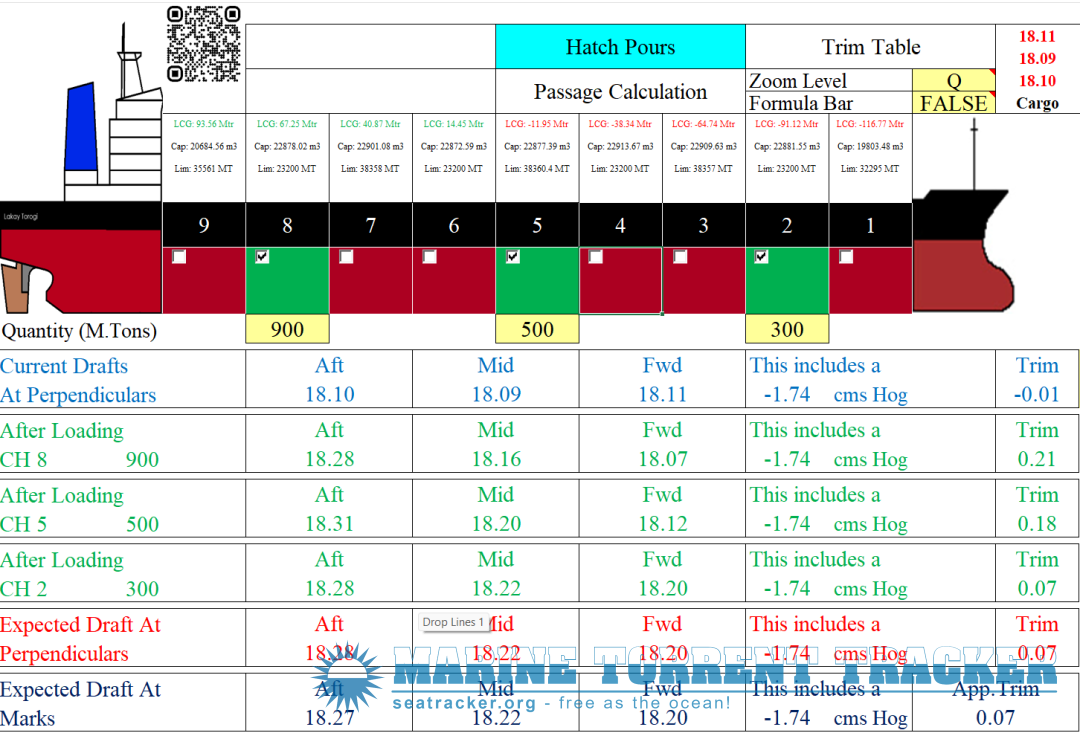

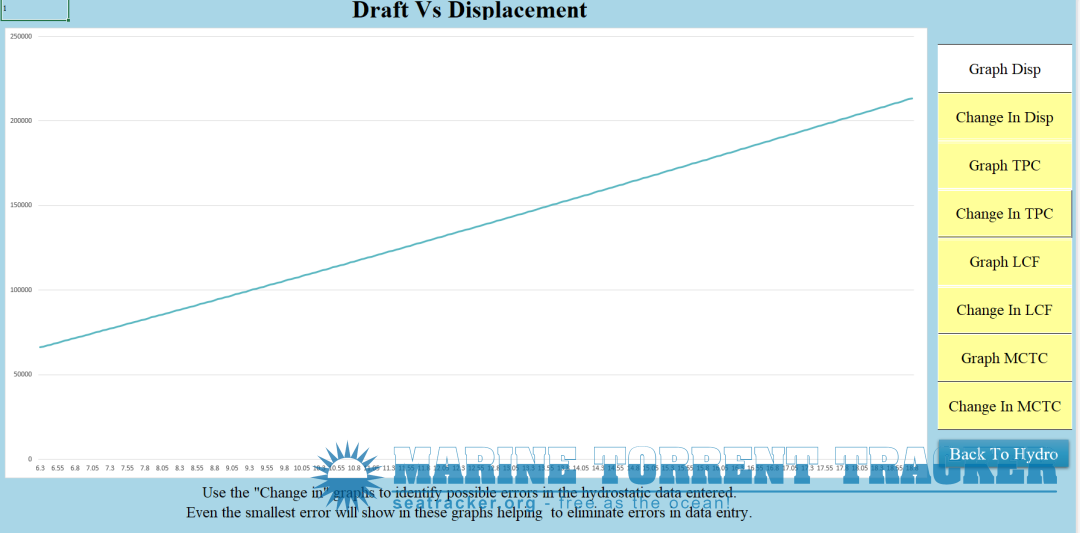

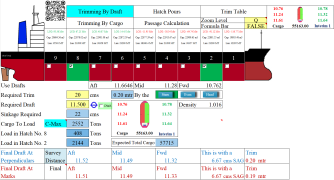

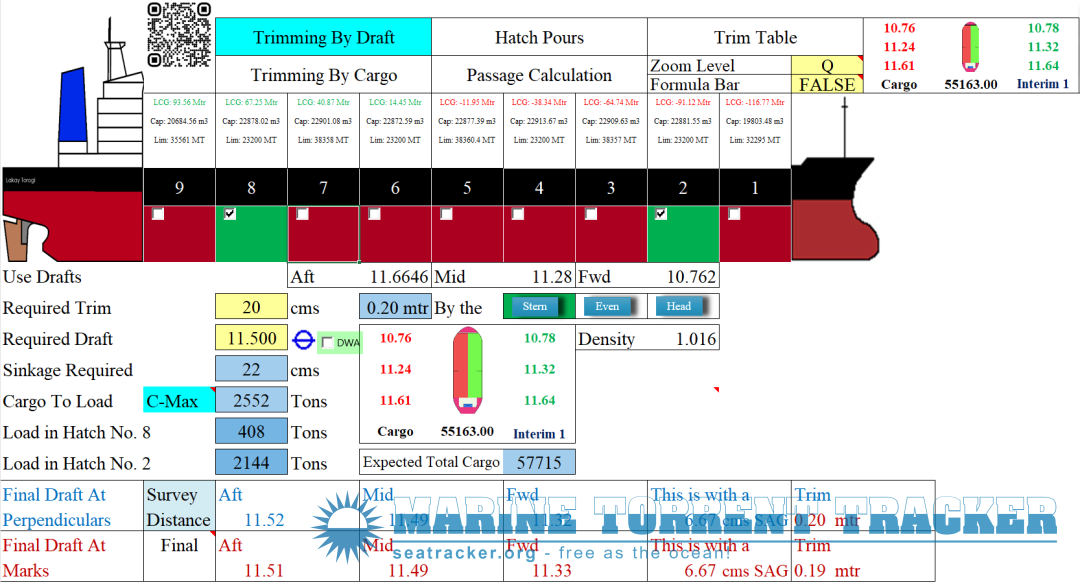

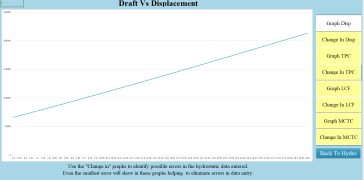

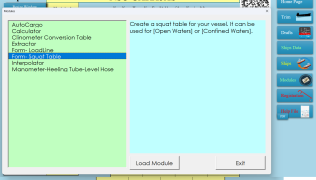

Screenshots

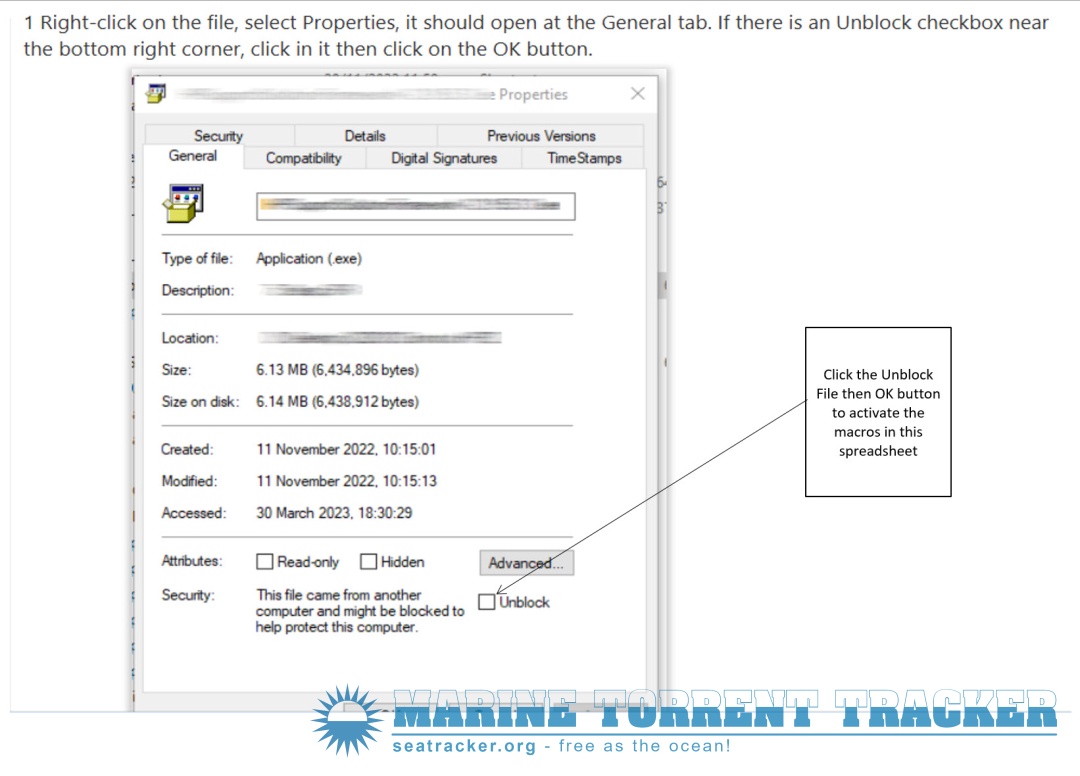

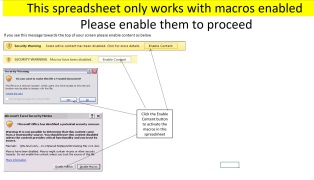

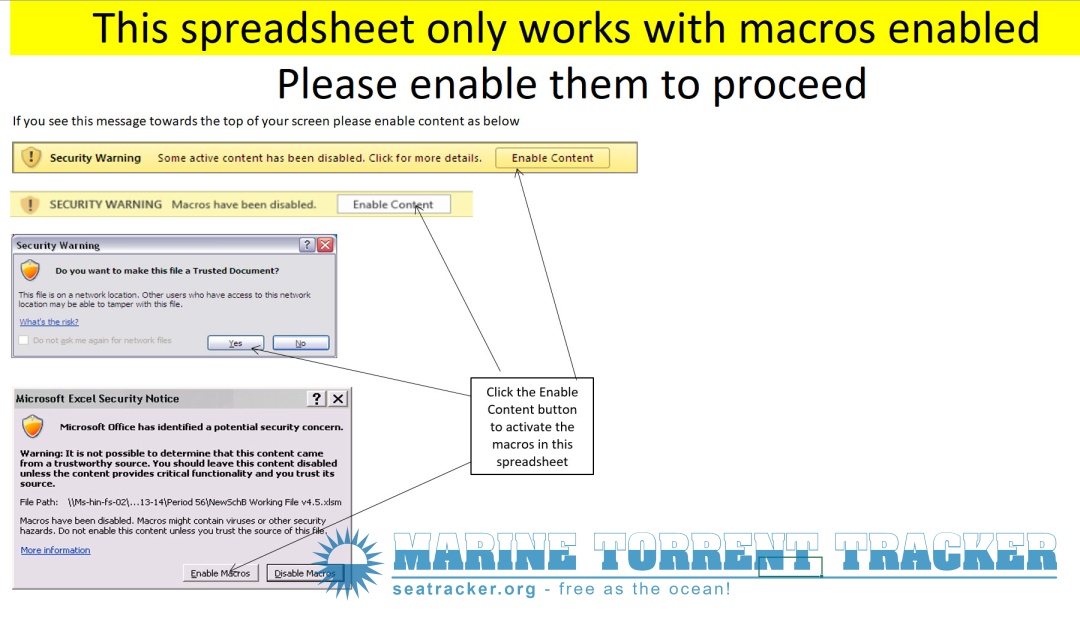

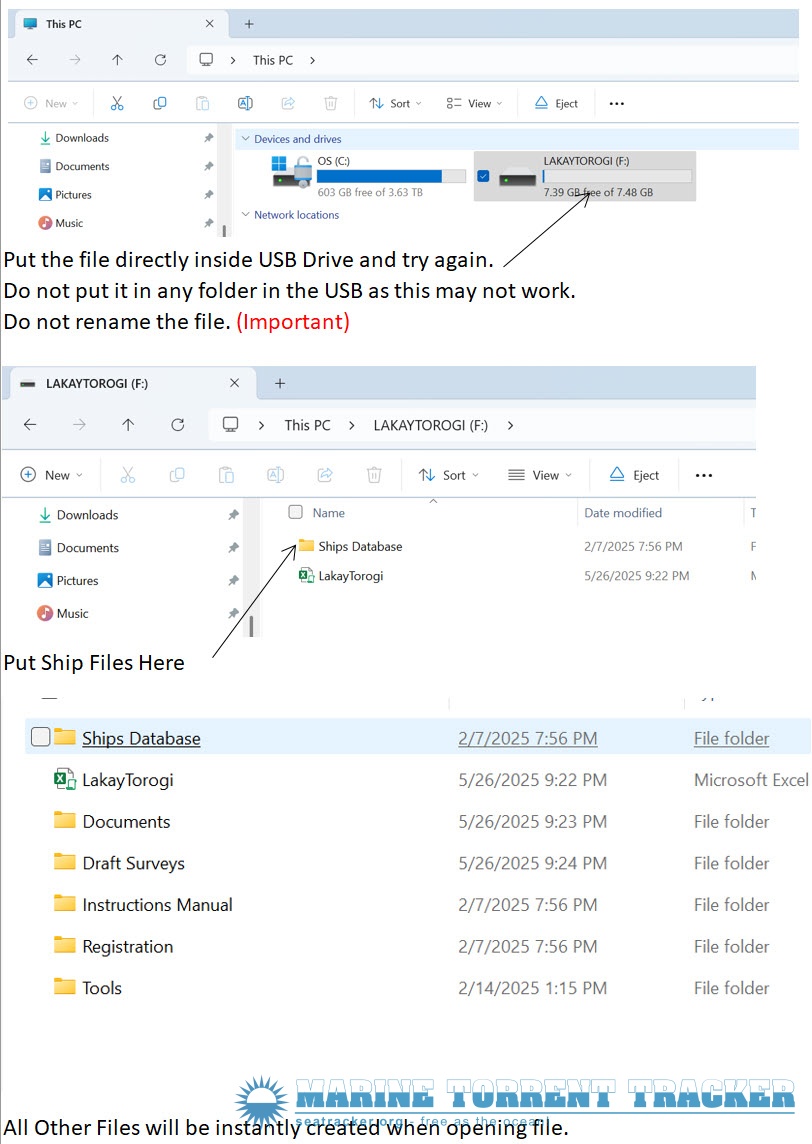

Installation
1.2.
3.
ChangeLogs
Changelogs2.3
-Added-Registered-Import Ship Data From Draft Survey Armour Ship Data File
-Added-Registered-Import Ship Data From SmartCal Type 1
-Added-Registered-Form Calculate Loadable Max Cargo with Draft Limits
2.2
-Added-Registered-Export Report to Another Form(If the User has another excel form. You need to relink the data for the first time)

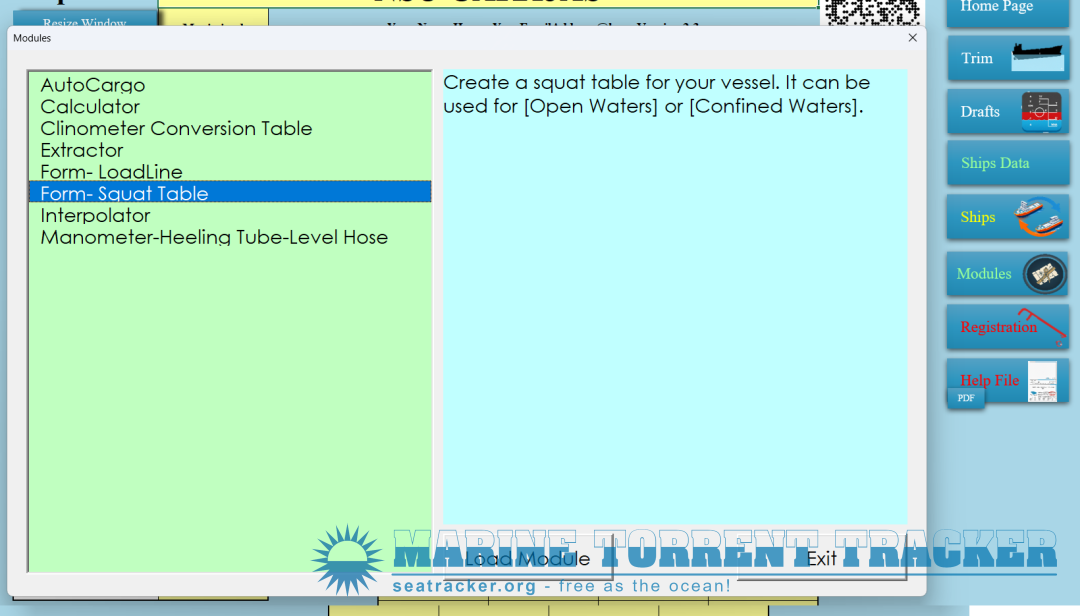

-Added-Squat Table for Ships
-Added-LoadLine to Module Page
-Remove Loadline From Data Page
-Removed Draft Correction (Manometer) Redundant in [Modules]. Users reported misleading to the manometer.
-Removed some threaded comments(Unnecessary due to having some older excel version)
-Added comment for Changing Draft Survey Marks to avoid confusion for draft survey
-AutoCargo Reworked Buttons for (Distribution by Hold Capacity)(Distribution by TankTop Limit)(Distribution by Hold Volume Percentage)
-Added AutoCargo (Distribution By TankTop Limit)
-Added Manometer-Heeling Tube-Level Hose Fast Reading for trimming.
2.1
-Optimized Draft Correction Userform to account for Ships with draft correction Data and without
-Added Progress Bar in the Userform
-Fixed Status bar where in sometimes it does not work
-Added Progress Bar and the Option to Turn it off
2.0.2
-Adjusted Userforms to Smaller Screen to account for smaller screens and laptops
-Adjusted IMO finder in Search Click in [Ships Button]
-Adjusted [Generate Hull Data -Auto] for errors
2.0.1
-Added Maximized Screen when loading screen to accommodate splash screen
-Ship-Added-EVER SHIP
2.0
-Added Sag Effect for Final Drafts
-Major Overhaul of excel format. Included Userforms for easier usage and visualization.
-Added Import Key for registration
-Added Splash Screen
-Added [Fix] for files when program is opening up
-Simplified Loading of Ships
-Simplified Calculate Missing Summer Draft, Displacement, LightShip, Deadweight and FWA
1.9
1.8
Draft Survey Program 2.3
Download [697 KB]
